Can a LED Driver Be Used as a Power Supply

When they are in charge of business lighting projects, sourcing managers and engineering teams often wonder if an LED driver can be used instead of a regular power source. The simple answer is "yes," but there are some big problems with that. An LED driver controls the current or power that goes to LED lights. This makes sure that they work well and last a long time. It is theoretically possible to use one in some situations, but because of how it was designed, using it as a general power source usually causes problems with compatibility, lower efficiency, and even damage to equipment.

Understanding LED Drivers vs. Power Supplies

What Is an LED Driver and How Does It Work?

An LED driver takes in AC or DC energy and changes it into a controlled output that is just right for LEDs. In contrast to regular lights, LEDs need exact current control to avoid thermal runaway and failure before they're supposed to. Drivers control the flow of electricity to keep the light steady and keep sensitive semiconductor parts safe from voltage spikes.

A main type of driver is one of three. Constant current drivers keep the amperage fixed even if the voltage changes. This makes them perfect for high-power uses like street lights or factories. Constant voltage drivers give off set voltages, usually 12V or 24V. They are widely used in building projects or flexible strip lighting. Dimmable drivers include control protocols like TRIAC, 0-10V, or PWM, which lets lights be changed on the fly in store and hospitality settings.

Key Differences Between LED Drivers and General Power Supplies

Standard power sources focus on changing voltage instead of controlling current as tightly as LEDs need. They work well for many types of technology, but they don't have the thermal control features that solid-state lighting needs. LED drivers have safety circuits that protect against too much current, too much heat, and short circuits. Basic power sources don't have these safety features.

There are big differences in output consistency. Most power supplies can handle greater voltage ripple, which is fine for gadgets that have their own voltage regulators. LEDs, on the other hand, directly react to the quality of the input; too much ripple causes flickering and speeds up decay. Good drivers keep ripple below 5%, which makes sure that the light doesn't flicker and meets business standards.

These parts are also separated by how efficient they are. Thanks to improved designs, modern LED drivers are 90% or more efficient, which means they produce less heat and cost less to run. Most generic power sources only work at 70–85% efficiency, which means they make too much heat that shortens their life and makes enclosed setups need more cooling.

Can an LED Driver Be Used as a Power Supply? Problem-Solving Perspective

Electrical Compatibility and Performance Risks

There are some technical problems that come up when you try to use an LED driver instead of regular electronics. Constant current drivers keep the amperage constant, which hurts devices that need stable voltage. If you put a 700mA driver into a 12V device that is only rated for 500mA, it will send too much current through it, which could damage the parts or even start a fire.

It looks like constant voltage drivers are more flexible, but the fact that they limit current causes problems. If a linked device uses more current than the driver can handle, safety circuits kick in and the device shuts down for short periods of time. We saw this happen on renovation projects where contractors tried to use 60W LED drivers for 80W accessory loads, which made the system not work right and caused the project to be delayed.

The thermal performance varies a lot. LED drivers are meant to be installed in light housings that are made to let heat escape. Putting them in tight electronics boxes that don't have enough air flow causes them to shut down thermally, especially in industrial settings where the temperature is above 40°C.

Real-World Case Studies from Commercial Projects

A makeover project at a hotel in Texas showed both good and bad things that could happen. The engineering team used extra 24V constant voltage drivers to power low-voltage decorative lights in the hallways. This worked because the load needs met the driver specifications and the installation locations had enough air flow. The procurement manager said that using current supplies saved 15% on costs.

On the other hand, a store chain tried using dimmable LED drivers for gadgets in show cases. Dimming circuits messed up linked equipment, making it act strangely and voiding the guarantee. In the end, the building manager changed all the drivers with the right power supplies, which took two weeks longer and cost more money. This case shows how important it is to fit the features of a component to the needs of a program.

Outdoor lighting workers have to deal with some unique problems. As part of a city project, waterproof LED drivers (IP67-rated) were used for sensor equipment in garden installations. Moisture protection worked well, but features that controlled current made sensors not work right. The project manager found out that having specialized features doesn't mean that everything will work with everything else.

Guidelines to Avoid Common Substitution Errors

Before using drivers for something else, make sure that the electrical specs match exactly. Check the load's properties, voltage output, and current ability. Constant current drivers should only be used to power gadgets that are specifically made to control current. Check the temperature range, moisture protection, and vibration tolerance values to make sure they match the fitting conditions.

See the technical documents from the maker. Good brands like Meanwell put out detailed application notes that explain how to use their products correctly and what problems they might have with other products. If you're not sure, talk to technical help before making a purchase choice. Spending 30 minutes on proof keeps us from having to do expensive work over on a job.

Think about what's needed to get certified. UL, CE, and RoHS safety ratings are given to LED drivers that are used in lighting uses. If you use them for something other than what they were made for, you might be breaking electrical codes or insurance rules, which could put general builders and building managers at risk of being sued.

How to Choose the Right LED Driver for Your Needs?

Selecting Drivers for Different Lighting Applications

For under-cabinet lighting, cove lighting, and artistic lights in homes, constant voltage LED driver units are usually used. Low-power LED strips can work with either 12V or 24V voltage, but 24V is more efficient over longer runs. Dimming makes it easier to control the mood, but you need wall switches that work with it or smart home interface to make it work.

Higher success standards are needed in business settings. High-CRI drivers (90+) correctly show the colors of goods in retail boutiques, which affects choices about what to buy. To keep eyes from getting tired and boost output, office lighting needs to work without flickering below 10% at 100Hz. This is something that procurement managers should think about when placing big orders.

For outdoor uses, strong weather safety is needed. Landscape lighting workers should ask for IP65 or IP67 grades to make sure the lights can handle wet conditions and a wider temperature range (-40°C to +60°C) to account for extreme weather. Surge safety features help protect municipal projects from power spikes caused by lightning that often happen in open installations.

Essential Electrical Criteria and Technical Specifications

Performance problems can be avoided by matching power correctly. Find the total load that is linked and add 20% as a safety cushion. A 50W LED light needs at least a 60W-rated driver to make sure it works within its heat limits and lasts as long as possible. Oversizing loses a lot of money, and undersizing makes sure that the project will fail early.

Power factor adjustment (PFC) is important for big systems. When drivers have an active PFC value above 0.95, they lower reactive power. This lowers electricity costs and makes sure that business buildings meet energy codes. When putting hundreds of fixtures in shopping stores or hotel buildings, this feature becomes very important.

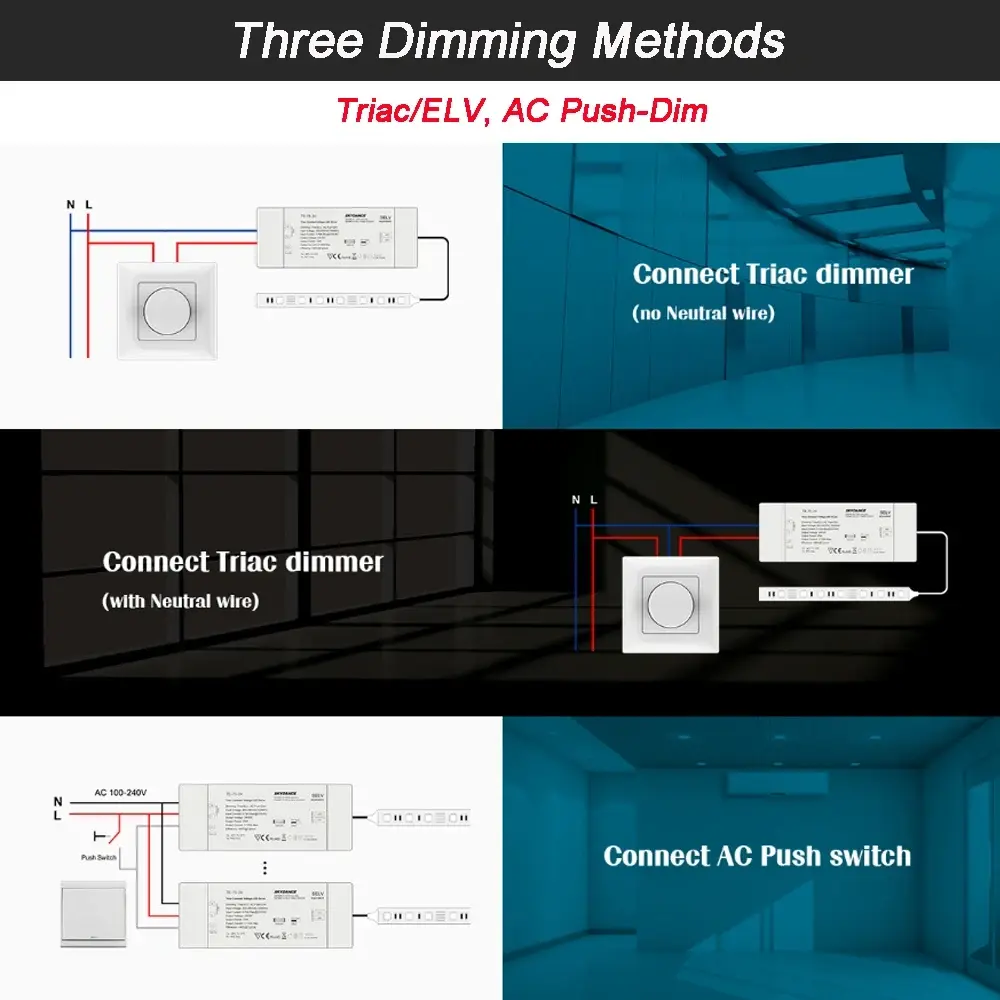

Integration problems can be avoided by knowing how fading works with other devices. TRIAC dimming works well for home upgrades that use wall dimmers that are already there. Most industrial lighting control systems use 0-10V standards. DALI and DMX make it possible to create complex scenes in hospitality settings. Check for control compatibility during design to avoid having to buy new ones, which can be expensive.

Comparing LED Drivers with Transformers and Ballasts

Electronic transformers change voltage but don't control current, so they can't be used with new LED lights even though they look like them. Magnetic transformers make too much heat and hum, which doesn't work with solid-state lights. LED driver systems are custom-made solutions that make the most of economy and lifespan.

Fluorescent ballasts control discharge lamps in a completely different way. If you try to power LEDs with fluorescent wiring, you could hurt yourself or break the law. When you do renovations, you have to update everything with the right LED drivers. This is an investment that you quickly get back through lower energy costs and less upkeep.

Procurement managers should ask for sample testing when they are thinking about big purchases. Engineers can get help from reliable suppliers like Philips and Meanwell. These suppliers offer services like lighting testing and heat analysis. This care makes sure that the specifications are correct before placing big orders, which protects project budgets and schedules.

Installation and Maintenance Best Practices for LED Drivers

Step-by-Step Installation Guide and Safety Precautions

Turning off the power at the circuit breaker is the first step in a proper operation. Use a multimeter to make sure there is no electricity before you touch the wires. Mount LED driver units in places with enough air flow (at least 20 mm of space on all sides); this is especially important for high-wattage units that produce a lot of heat while they're working.

When adding constant voltage drivers, be sure to pay close attention to the polarity. Reversed polarity breaks LEDs right away and voids warranties. Use the right rated wire diameter for the length and current load of the line. Voltage drops when wire isn't the right size, which makes lights less bright and connections overheat. This is a common mistake made in a hurry during installs.

Use approved ways to keep all links safe. Stranded wire can make a solid connection with terminal blocks. The conductivity of solder links is better, but you need to use the right method to keep the joints from getting cold. Wire nuts work well in homes, but they might come loose in industrial areas where they are vibrated a lot. Managers of engineering should choose connecting methods that work with the surroundings.

Troubleshooting Common LED Driver Issues

Flickering could mean a number of different problems. Check the security of the input voltage. Unstable operation is caused by utility changes or branch circuits that aren't working right. If settings are already present, make sure the dimmer works with them. Check connections for rust or looseness, especially in outdoor setups that get wet and hot and cold all the time.

Thermal stress is often the cause of failure before it should. Make sure the temperature in the area stays within the ranges given. Make sure that insulation or trash hasn't gotten in the way of air flow. Check the case temperature while it's running. If it stays above 70°C for a long time, it means the cooling isn't working well and the heat sink needs to be moved or upgraded.

No-output situations need to be diagnosed in a planned way. Check the voltage at the driver wires for input. Check the output while the load is not linked to separate problems with the fixtures from driver failure. Many drivers have restart keys or fuses that can be replaced. Check the manufacturer's instructions before thinking that the driver has completely failed and needs to be replaced.

Maximizing Driver Lifespan and Understanding Warranty Terms

Environmental factors have a huge effect on how long people live. At 40°C, capacitors age faster than at 25°C, so drivers that are recommended for 50,000 hours may only last 25,000 hours. When you can, put the drivers in places where the temperature can be managed. Shaded areas help outdoor setups because they lower the amount of heat gain from the sun.

Voltage worry cuts life by a large amount. The incoming power must match the driver's requirements. When you use a 120V motor on a 277V circuit, it breaks right away. Voltage changes greater than ±10% speed up the breakdown of parts. Facility managers should keep an eye on the quality of the power in important sites and put in cooling equipment if the utility service stops working properly.

Carefully read over the guarantee terms when you are buying. For business drivers, standard coverage lasts between 3 and 5 years. Premium makers, like Meanwell, give longer warranties to show that their parts are of higher quality. Write down the times of installation and keep your buy records. Warranty claims need proof of proper installation and operation according to the manufacturer's instructions. To make this clear to installation workers, the buying team should talk to the manufacturers.

Procurement Insights: Buying LED Drivers for Commercial and Industrial Use

Sourcing Authentic Products from Reputable Suppliers

There are a lot of fake LED driver products in the lighting business, which is very bad for safety and performance. Use programs that verify goods from the maker to make sure they are real. Online tools for validating serial numbers are kept up to date by OSRAM, Samsung, and Meanwell. Instead of buying from marketplace sellers you can't trust, buy from approved distributors mentioned on the manufacturer's website.

Marks of certification show that safety standards have been met. The UL listing shows that it meets North American safety standards. The CE mark shows that something meets European standards. DLC certification makes sure that energy economy meets the requirements of utility refund programs. Check these certifications against databases maintained by the certifying bodies. Fake goods often have fake marks printed on them.

Building ties with providers you can trust will pay off in the long run. Distributors that have been around for a while can offer expert support, help with specifications, and reliable product supply. They always keep their promises when it comes to guarantees and communicate clearly throughout the whole buying process. When dealing with problems with specifications or requests for change, engineering managers can benefit from the knowledge of their suppliers.

Pricing Benchmarks and Bulk Purchase Strategies

When you buy 100-500 standard 12V constant voltage drivers, they cost between $8-15 each, based on the power and features. Higher-voltage 24V types cost about 10-15% more because they need different parts. Depending on the brand placement and how complicated the control protocol is, dimmable models cost an extra $3-8 per unit.

Buying in bulk can save you a lot of money. Orders of more than 1,000 units usually get savings of 20-30%. An annual supply deal helps you plan your budget and decide what to do first when there are shortages of certain parts. When possible, procurement managers should combine needs from various projects so they have more negotiating power with providers.

The total cost of ownership is more than just the price of the car. When cheap drivers break down within 18 months, guarantee claims, labor costs, and damage to the company's image are much higher than the initial savings. Figure out the full cost of ownership, including how much energy it uses, how long it's supposed to last, and how to repair it. In business settings, better drivers that cost 40% more but last twice as long are a better deal.

Evaluating Supplier Reliability and After-Sales Support

When evaluating a seller, ask for technical documents. Full datasheets, installation guides, and photometric results are all signs of skilled work. When documentation is missing or too general, it means that the source isn't reliable or there isn't enough technical help. Before giving their approval for vendor additions, product line leaders should carefully read these papers.

Performance claims are backed up by testing samples. Before making big purchases, order small amounts to try in the lab or for pilot installs. Check the output voltage, current precision, efficiency, and power factor against the datasheets. Suppliers with a good reputation will gladly be tested and will provide reference units and test records from independent labs.

Responding quickly and effectively after the sale is what sets great sellers apart from average ones. Check how long it takes for expert questions to be answered. Use made-up situations to test how to file a service claim. Check out what other customers have said on B2B and business sites. Distributors and brokers that serve North American markets should help people in their own countries instead of sending questions overseas. This will make sure that problems are solved quickly while the project is being carried out.

Conclusion

For business lighting projects to go smoothly, it's important to know the difference between LED driver units and general power sources. Drivers can technically work as power sources in some situations, but because of how they are designed, they aren't always compatible and can't do as well in situations other than LED uses. To make a good specification, you need to make sure that the electrical properties match the needs of the application exactly, look at the manufacturer's paperwork, and buy from sources you can trust. The information here, from the best ways to put things to how to buy them, gives engineering managers and buying professionals the tools they need to make smart choices that will save them money and make lighting systems work better and last longer in a variety of settings.

FAQ

Can I Use a Constant Voltage LED Driver for Other Electronics?

Constant voltage LED driver units work with low-voltage DC devices that match their output specs, but safety circuits may go off without warning when the load changes. Devices that are made to work with controlled power sources usually work fine, but devices that have their own voltage regulation may have problems working with others. Always make sure that the current needs don't go beyond what the driver can handle, and test for compatibility before deploying.

What Happens If I Connect a Constant Current Driver to Standard Electronics?

Voltage control is what most circuits expect, but current regulation is not. When you connect them to constant current drivers, the drivers push too much current through parts that are meant to handle less amperage, which usually damages them right away. This basic problem means that constant current drivers can't be used for most things. They can only be used with LED lights that are specifically designed to work with current regulation.

Are Dimmable LED Drivers Compatible with All Dimmer Switches?

What works with what depends on the dimming routines. TRIAC dimmers need drivers that are compatible with TRIAC; using combinations that are not compatible will cause flashing, buzzing, or failure. Low-voltage control wire is needed for 0-10V circuits. Before installing, make sure that the dimmer and driver specs match. Mixing technologies that aren't meant to work together breaks warranties and causes annoying performance problems that can only be fixed by replacing the whole thing.

Partner with USKYLED for Reliable LED Driver Solutions

USKYLED offers complete lighting options backed by a dedication to quality and a wealth of technical knowledge. Our engineering team can help you with the specifications of your business, industrial, or building projects, making sure that you choose the best parts from our huge catalog. We have low prices, foreign certifications like UL and DLC, and quick customer service after the sale, whether you're looking for LED driver manufacturers to buy in bulk or need special OEM solutions. Email our team at sales@uskyled.com to talk about your unique needs and find out how our energy-efficient lighting technology can change your projects while lowering your costs.

References

1. Lighting Research Center. "LED Driver Performance and Reliability in Commercial Applications." Rensselaer Polytechnic Institute Technical Report, 2021.

2. International Electrotechnical Commission. "IEC 61347-2-13: Lamp Control Gear - Particular Requirements for DC or AC Supplied Electronic Control Gear for LED Modules." Standards Publication, 2020.

3. U.S. Department of Energy. "LED Driver Selection Guide for Commercial Buildings." Solid-State Lighting Program Technical Brief, 2022.

4. Institute of Electrical and Electronics Engineers. "IEEE 1789: Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks." Professional Standards, 2019.

5. DesignLights Consortium. "Technical Requirements for LED Drivers in Commercial Lighting Systems." DLC Qualification Standards, Version 5.1, 2023.

6. National Electrical Manufacturers Association. "NEMA SSL 7A: Phase Cut Dimming for Solid State Lighting." Industry Guidelines and Application Notes, 2020.
